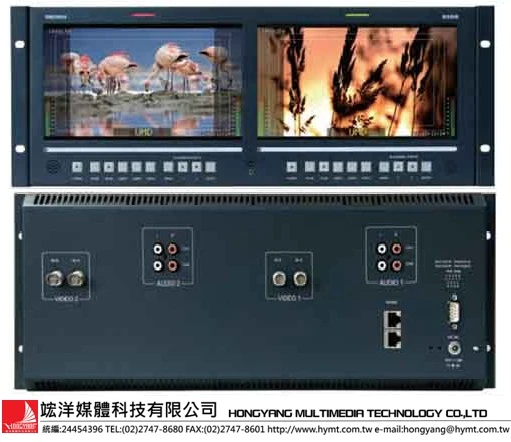

Size 4U
Number of Screens 2
Display area 9" diagonal (7.795"H × 4.413"V) (198mm ×112.08mm)
Viewing angle 140°H × 120° V
Color depth 16.2M
Resolution 800H × 480V
Dot Pitch 0.2475mm (H) × 0.2335mm (V)
Contrast Ratio 400:1
Brightness 300cd/m2
Dimensions 19.1"W × 7"H × 2.7"D (486mm × 178mm × 69mm)
Power consumption 12VDC/ 10 watts. (3.8 Amps max -CE & UL compliant)
Video Input 2 auto-sensing HD/SD-SDI and composite
Video Output none
Audio Input 4 analog audio
Audio Output none
